Bracket & 1.5m Mast Multi Fit
Introducing the versatile Bracket & 1.5m Mast Multi Fit – your go-to solution for seamless antenna installation on your RV. With two flexible attachment options catering to different RV setups, this multi-fit bracket ensures you have the perfect antenna positioning for optimal reception.
Option 1 - Permanent Fit (Non Pop Top Vans):

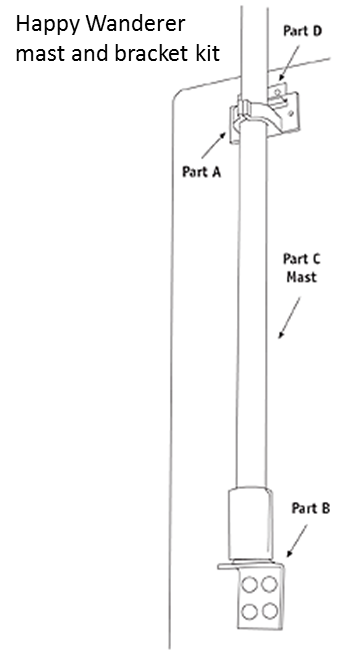

For a fixed and secure installation, carefully follow the instructions for a permanent fit. Drill and screw Part D (J Mould) near the roof line to provide the necessary angle for Part C, the 1.5m plastic mast pole, ensuring a minimum of 1 meter protrudes above the roof. Attach Part B to the RV wall, providing a secure drop point for the mast. Refer to the provided diagrams for a step-by-step guide, and don't forget to seal all holes before securing with screws or pop-rivets.
Option 2 - Non Permanent Fit (Suitable for DT8 & T-Bar Antenna):
Opt for a non-permanent installation with the roof lock-down travel clamp when lifting the roof. This option eliminates the need for screws, allowing you to use any corner of the van. Utilize the metal J Mould (Part D) already fitted on your van during manufacture. If needed, use the plastic J Mould supplied with the bracket set for high-lift camper roofs. Follow the detailed instructions to ensure a secure fit with Part A, the tube clamp attached to the plastic mast pole, and Part B dropped into the travel clamp.
Key Features:
- Suitable for both permanent and non-permanent installation.
- Versatile compatibility with DT8 & T-Bar Antennas.
- Comprehensive contents pack including tube clamp, 90-degree bracket, plastic mast pole, and J-Mould.
- Recommended mast height adjustment for improved stability and reception.
- Ideal for pop top vans and campers with side roof travel clamps.
Whether you prefer a permanent setup or the flexibility of a non-permanent fit, the Bracket & 1.5m Mast Multi Fit provides the ideal solution for optimizing your antenna placement. Upgrade your RV experience and achieve superior TV reception on your travels – order your Multi Fit bracket today!
| SKU | 930282049632 |
| Barcode # | 930282049632 |
| Brand | Happy Wanderer |
| Shipping Weight | 0.5100kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.060m |
| Shipping Length | 0.800m |
| Shipping Cubic | 0.008640000m3 |
| Unit Of Measure | ea |
